Garbage Trucks Weighing System
The Check weighing systems for garbage trucks are achievable. According to our work experience, this check weighing system must be established safely, simply, and combined with the actual operating work system, otherwise it will be difficult to run.
The following is the technical information about the structure and operation of the related system.
We understand that your company wants to detect how much garbage is in the garbage truck by weighing the entire vehicle. However, there are serious technical and safety issues in weighing the entire vehicle. Please check as following:
1. If we weighing the entire vehicle, we need to install the sensor on the axle; this changes the original structure of the truck and there are hidden safety hazards in long-term operation;
2. It is very difficult to install, calibrate, and maintain the sensors. It is very difficult to handle without a very professional engineers team.
3. During the weighing process, due to the presence of liquid components in the rubbish, the liquid may leak or shake in the compartment after the vehicle has traveled. This will make the weighing data to be inaccurate;
4. When the garbage truck is parked on a gradient place, the entire vehicle is not horizontal and cannot be accurately weighed.
5. If we weighing whole truck, we need 4 load cells at least, cost is higher.
Brans has done the weighing analysis of the garbage trucks and animal feed vehicle weighing project. Our experience tells us that it is difficult to build a weighing system for the whole vehicle.
Now let’s talk some details of our own successful solutions for the weighing system.
Firstly, we make the system as the following picture.
1. The weighing system components are:
High-precision load cell
High-precision weighing controller
GPS, speed and other collectors
Cloud control system
2. The operating system advantages
(1) Don’t need to change main structure of trucks
(2) Easy to install, calibration
(3) Convenient for after-sales maintenance and repair
(4) A garbage truck requires up to 2 sensors, saving costs
(5) This system Can accurately measure the weight in each bin, calculate the total weight of garbage collected every day, the data error is small

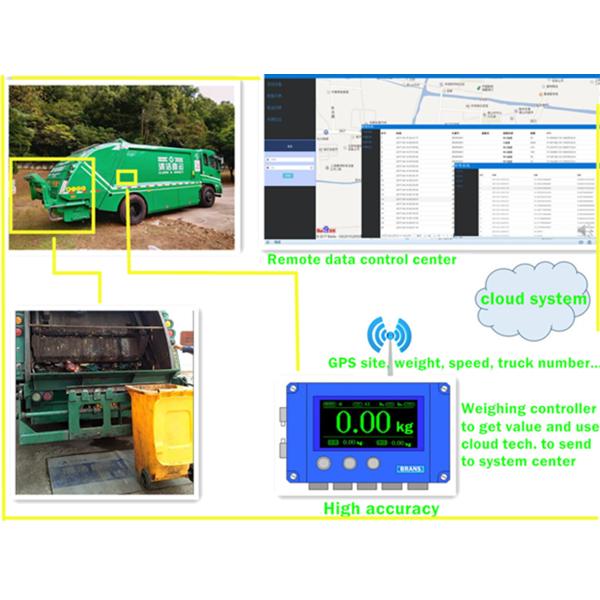

3. The operating system diagram
The sensor is installed on the grab of the trash can, which is easy to install.
4. System operation
We could sale the load cells together with high accuracy weighing controller with you. Then your team could install it and connect with GPS, SPEED...instruments together.
You could build your own cloud system and technical team there.
In addition, there are many matters needing attention in the whole process from the establishment, installation, and use of the system, and there are many detailed technical issues to be dealt with. If we decide to cooperate later, our company will provide corresponding operating instructions and work instructions.
